MyPBX PRO - IP-PBX for Your Business
Users: 100
Concurrent Calls: 22
Voicemail: 4000min
Interface:
Up to 16 Analog Ports (FXO/FXS)
Up to 8 GSM Ports(Quad-Band GSM/GPRS850/900/1800/1900MHz)
Up to 8 UMTS Ports(UMTS 900/2100MHz or 850/2100MHZ or 850/1900MHZ)
Up to 8 BRI Ports
Flash: 512 MB Onboard Flash
RAM: 128 MB Onboard RAM
LAN: 1 (10/100Mbps)
WAN: 1 (10/100Mbps)
Size: 440x175x45 mm (1U Rack-Mount)
Weight: 2500g
Power Supply: 100-240V~ 50/60Hz 1.5A MAX
Maximum Power: 60W
SIP Protocol: SIP(RFC3261), IAX2
Transport Protocol: UDP,TCP,TLS,SRTP
Codec: G.711, GSM, SPEEX, G.722, G.726, ADPCM, G.729 A, H261,
H263,H263p, H264 ,MPEG4.
DTMF: Inband, RFC2833, SIP INFO
Echo Cancellation: Supported
LED: Red for FXO/GSM/UMTS, Orange for BRI, Green for FXS
Network: Static IP, PPPoE, DHCP, Firewall, VLAN, DDNS, QoS,
DHCP Server, OpenVPN
Multiple Languages Support:
Chinese, Dutch, English, French, German, Hebrew, Korean, Italian,
Polish,Portuguese, Romanian, Russian, Spanish, Thai, Turkish
Specification
Specification
Attend Transfer
Blind Transfer
BLF Support
Blacklist
Callback
CDR (Call Detail Records)
Call Forward
Call Parking
Call Pickup
Call Routing
Call Transfer
Call Waiting
Caller ID
Conference
Define Office Time
DDNS
Dial by Name
DISA (Direct Inward System Access)
DIDs
Distinctive Ringtone
DND (Do Not Disturb)
FAX (T.38)
Firewall
Follow Me
IVR (Interactive Voice Response)
Intercom/Zone Intercom
Mobility Extension
Multi-language Prompt
Music On Hold
Music On Transfer
MyTwins (Double System)
One touch record
OpenVPN
Phone Provisioning
PIN User(PIN Code Control)
Paging/Zone Paging
PPPoE
Queue
Ring Group
Route by Caller ID
Skype Integration (Skype Connect)
SMS to Mail/Mail to SMS
Speed Dial
Static Route
Three Way Calling
Voicemail
Voicemail to Email
Voicemail Forwarding
Web Based Control Panel
*TR069
Spy functions (Normal Spy, Whisper Spy, Barge Spy)
Note: the features with asterisk (*) will be supported in next version.
|
|
|
|
|
|
|
|
|
|
|
|

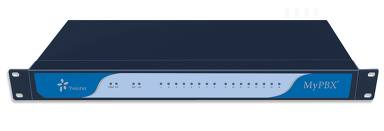

MyPBX Pro is a 1U rack mount model IP PBX for up to 100 users. Internally, it supports network access to ISDN BRI, PSTN, GSM/UMTS and VoIP. High performance, stability and compatibility, combined with rich functionality make MyPBX Pro perfectly suited for your business communication.
